LLM Reasoning Model - Math 训练记录

Last updated on June 30, 2025 pm

Infra: https://github.com/volcengine/verl

Train Data: https://huggingface.co/datasets/BytedTsinghua-SIA/DAPO-Math-17k

Eval Data: https://huggingface.co/datasets/HuggingFaceH4/aime_2024

https://huggingface.co/datasets/HuggingFaceH4/MATH-500

Base Model: https://huggingface.co/Qwen/Qwen2.5-7B

https://huggingface.co/Qwen/Qwen2.5-7B-Instruct

Prompt Template:
1
template = f"""Solve the following math problem step by step. The last line of your response should be of the form Answer: $Answer (without quotes) where $Answer is the answer to the problem.\n\n{question}\n\nRemember to put your answer on its own line after \"Answer:\".""""

训练配置

首先对于Base模型，我们的配置如下：

python3 -m verl.trainer.main_ppo --config-path=config \
    --config-name='ppo_megatron_trainer.yaml'\
    algorithm.adv_estimator=grpo \
    data.train_files="$train_files" \
    data.val_files="$test_files" \
    data.train_batch_size=32 \
    data.max_prompt_length=1024 \
    data.max_response_length=15360 \
    data.filter_overlong_prompts=True \
    data.truncation='error' \
    actor_rollout_ref.model.path=Qwen/Qwen2.5-7B \
    actor_rollout_ref.actor.optim.lr=1e-6 \
    actor_rollout_ref.actor.ppo_mini_batch_size=16 \
    actor_rollout_ref.actor.ppo_micro_batch_size_per_gpu=1 \
    actor_rollout_ref.actor.megatron.pipeline_model_parallel_size=2 \
    actor_rollout_ref.actor.megatron.tensor_model_parallel_size=2 \
    actor_rollout_ref.actor.use_kl_loss=True \
    actor_rollout_ref.actor.kl_loss_coef=0.001 \
    actor_rollout_ref.actor.kl_loss_type=low_var_kl \
    actor_rollout_ref.actor.entropy_coeff=0 \
    actor_rollout_ref.model.enable_gradient_checkpointing=True \
    actor_rollout_ref.rollout.log_prob_micro_batch_size_per_gpu=1 \
    actor_rollout_ref.rollout.tensor_model_parallel_size=2 \
    actor_rollout_ref.rollout.name=vllm \
    actor_rollout_ref.rollout.gpu_memory_utilization=0.45 \
    actor_rollout_ref.rollout.n=3 \
    actor_rollout_ref.ref.log_prob_micro_batch_size_per_gpu=1 \
    actor_rollout_ref.ref.megatron.pipeline_model_parallel_size=2 \
    actor_rollout_ref.ref.megatron.tensor_model_parallel_size=2 \
    algorithm.use_kl_in_reward=False \
    trainer.critic_warmup=0 \
    trainer.logger=['console','wandb'] \
    trainer.project_name='verl_grpo_dapo17k' \
    trainer.experiment_name='qwen2_7b_base_use_kl_loss_megatron' \
    trainer.n_gpus_per_node=8 \
    trainer.nnodes=1 \
    trainer.save_freq=100 \
    trainer.test_freq=5 \
    trainer.total_epochs=15 $@

其中lr为1e-6，来自verl官方的默认实现，没有warm_up以及decay，根据Qwen2.5 Technical Report，Qwen2.5-Base模型训练时的LR没有貌似具体说明(pretrain)，但是SFT从7e-6开始decay到7e-7，offline RL(DPO)阶段的LR为7e-7，所以看起来1e-6也比较合理。

Qwen2.5 Technical Report

以下这些参数经过了调整，目前的配置可以在单机8卡(80G VRAM per GPU)上运行。

param	offical	mine
train_batch_size	1024	32
ppo_mini_batch_size	256	16
ppo_micro_batch_size_per_gpu	40	1
max_prompt_length	512	1024
max_response_length	1024	15360
rollout.n	5	3
rollout.gpu_memory_utilization	0.6	0.45
log_prob_micro_batch_size_per_gpu	40	1

显存占用应该来自三部分：训练时激活/KV Cache 占用 + vLLM KV + 模型权重/优化器

由于使用flash-attn，训练时激活显存应该和KV Cache一样，均为线性增长。官方配置中启动的模型上下文窗口应该是 2k (512 + 1024 ceil)，而我修改后应该是16k，相当于8x增长，很容易OOM，因此我降低了ppo_micro_batch_size_per_gpu from 40 to 1, 相当于40x的降低，同时减少rollout.gpu_memory_utilization，给Actor分配更多的显存。

ppo_mini_batch_size在这里只影响收敛速度和稳定性，其实可以不用改。(as well as rollout.n)

此外，遵循verl官方的设置：

1
2
3

actor_rollout_ref.actor.use_kl_loss=True \
actor_rollout_ref.actor.kl_loss_coef=0.001 \
actor_rollout_ref.actor.kl_loss_type=low_var_kl \

/verl/verl/workers/actor/megatron_actor.py

if self.config.use_kl_loss:
    ref_log_prob = data["ref_log_prob"]
    # compute kl loss
    kld = kl_penalty(logprob=log_prob, ref_logprob=ref_log_prob, kl_penalty=self.config.kl_loss_type)
    kl_loss = agg_loss(loss_mat=kld, loss_mask=response_mask, loss_agg_mode=self.config.loss_agg_mode)

    policy_loss = policy_loss + kl_loss * self.config.kl_loss_coef
    metrics["actor/kl_loss"] = kl_loss.detach().item()
    metrics["actor/kl_coef"] = self.config.kl_loss_coef

这里使用low_var_kl，也就是k3估计：

kl = ref_logprob - logprob
ratio = torch.exp(kl)
kld = (ratio - kl - 1).contiguous()
return torch.clamp(kld, min=-10, max=10)

最终的policy_loss 要加上k3估计的 kl_loss，kl_loss_coef为系数，这里使用0.001

Performance

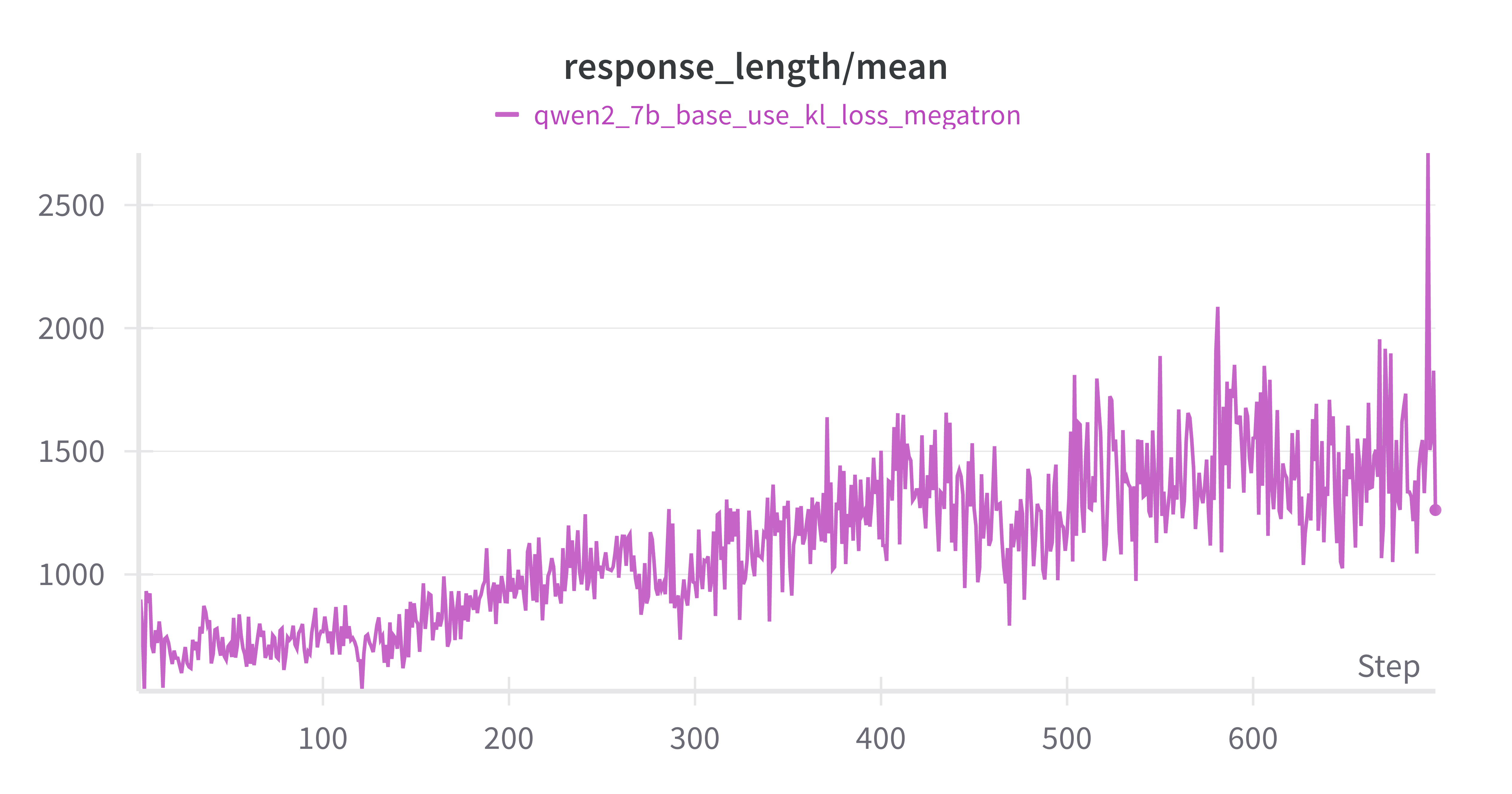

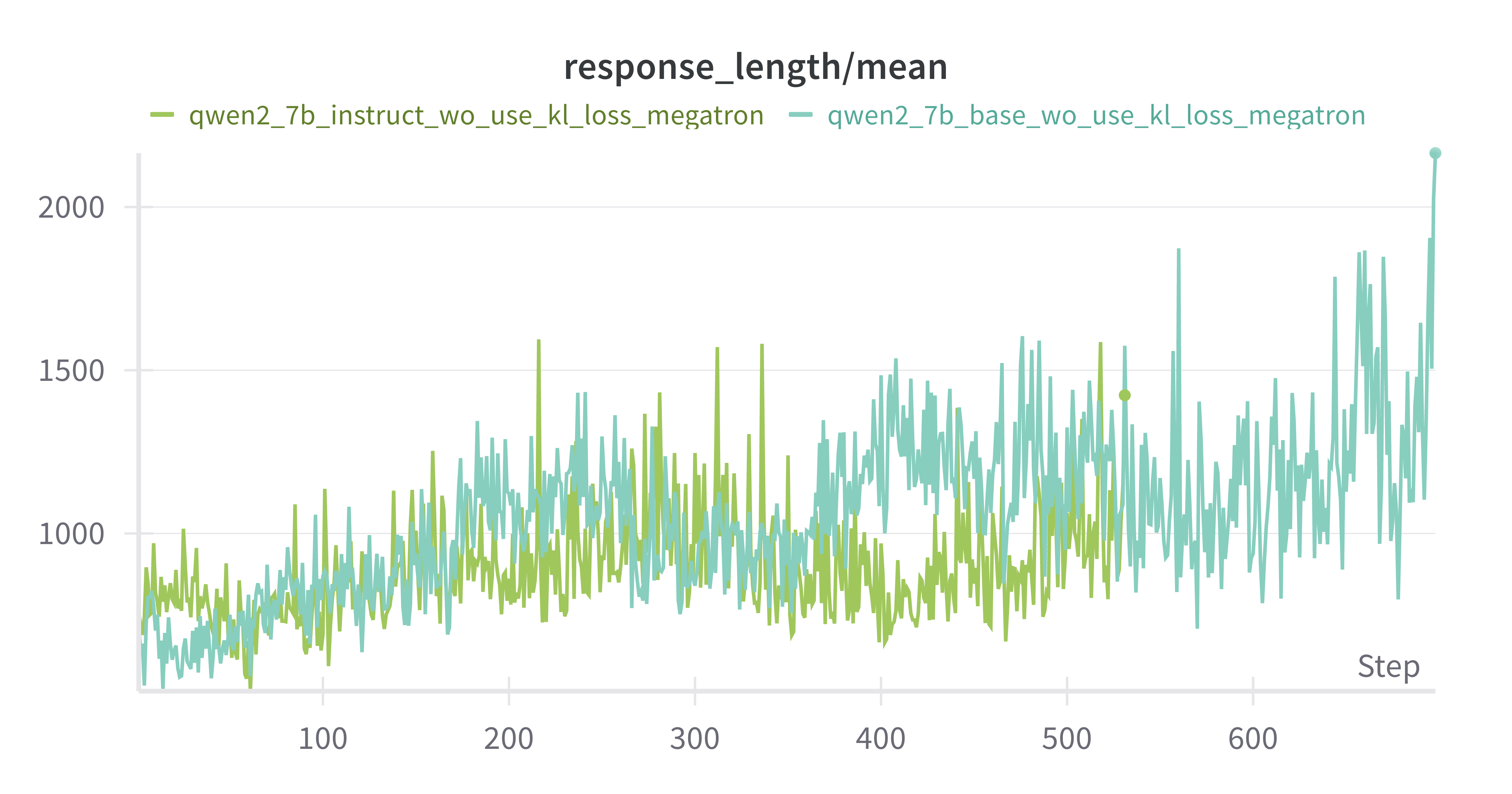

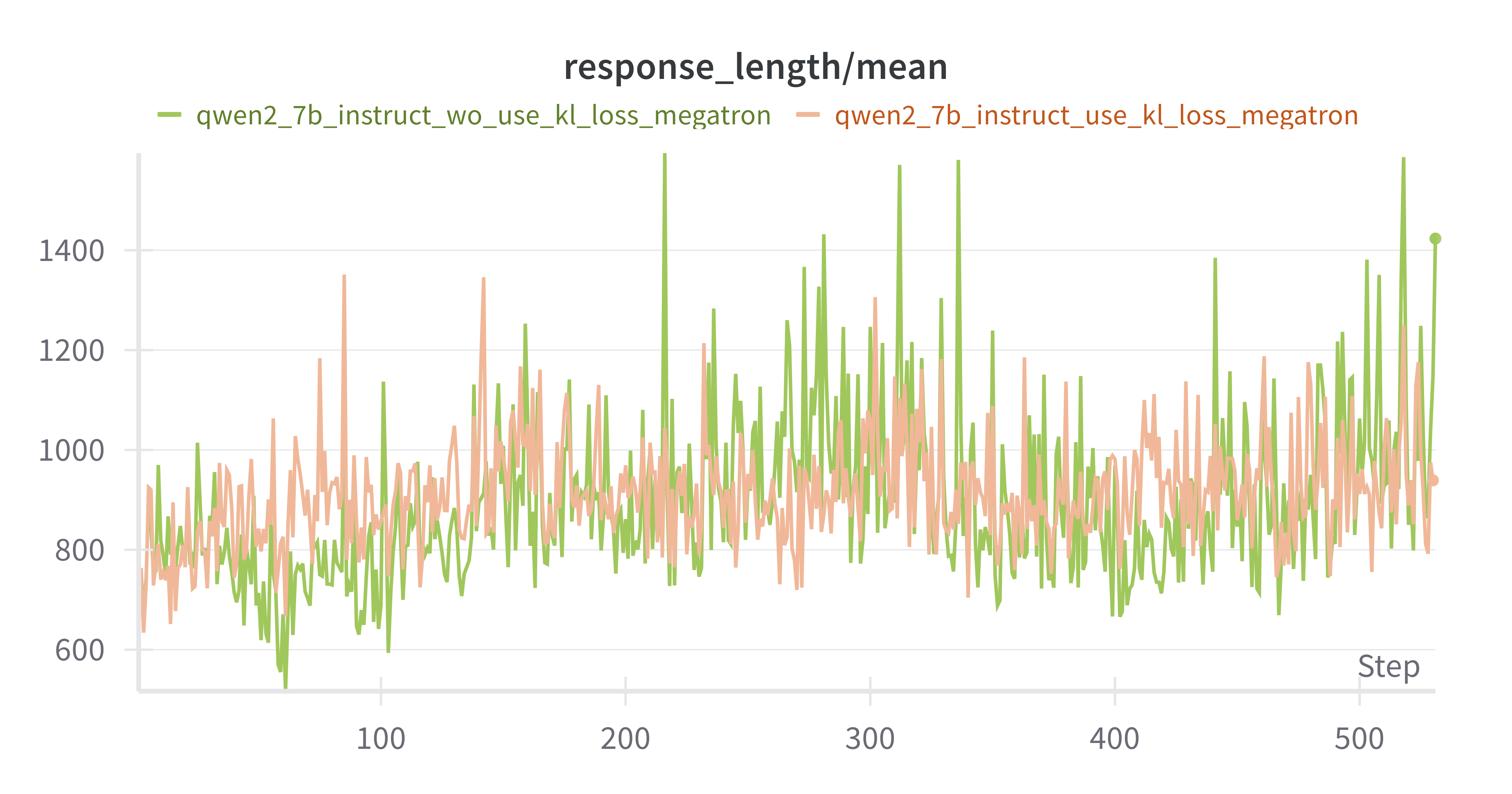

Qwen-7B-Base response_length/mean

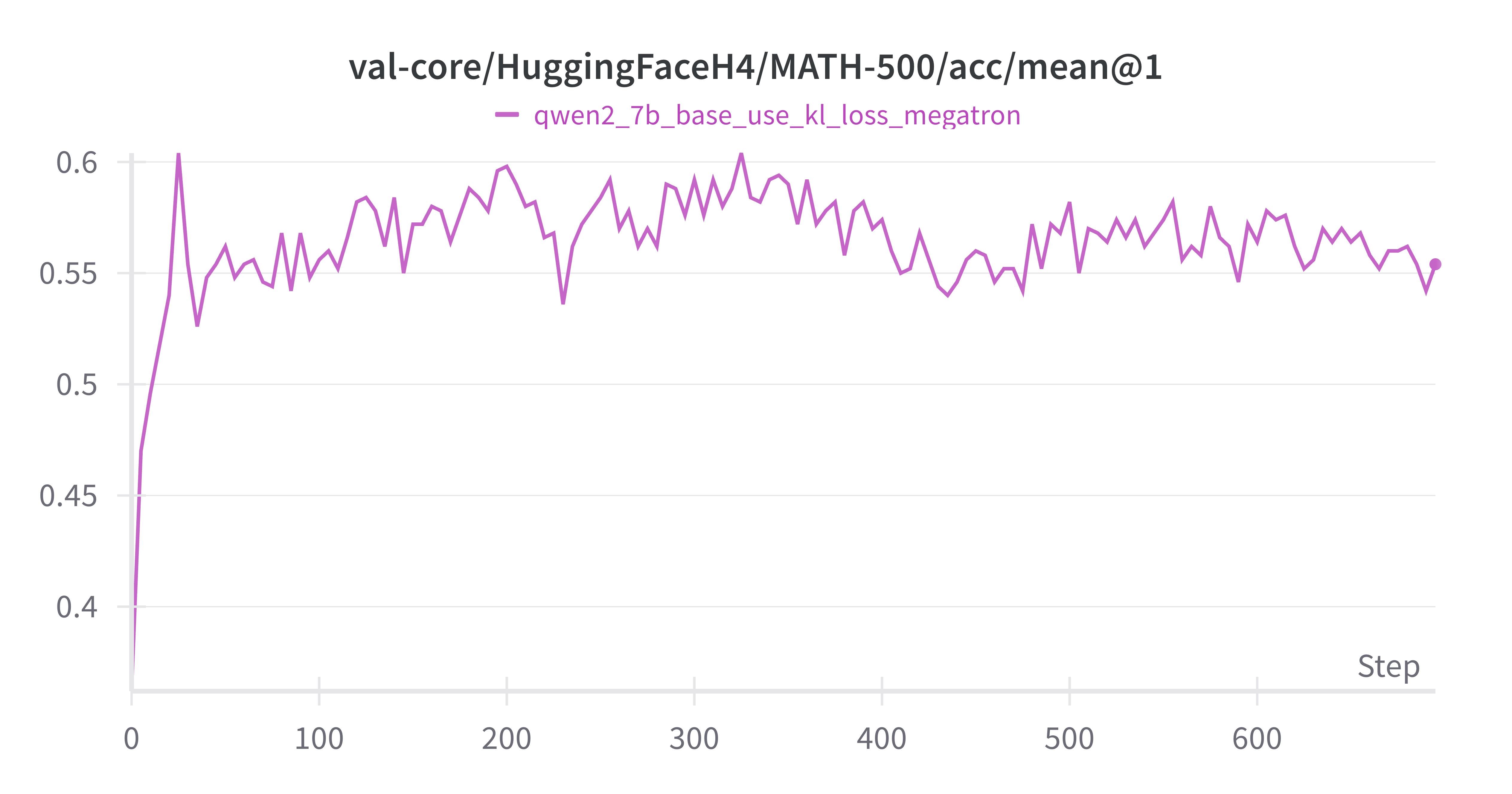

Qwen-7B-Base MATH-500 acc mean@1

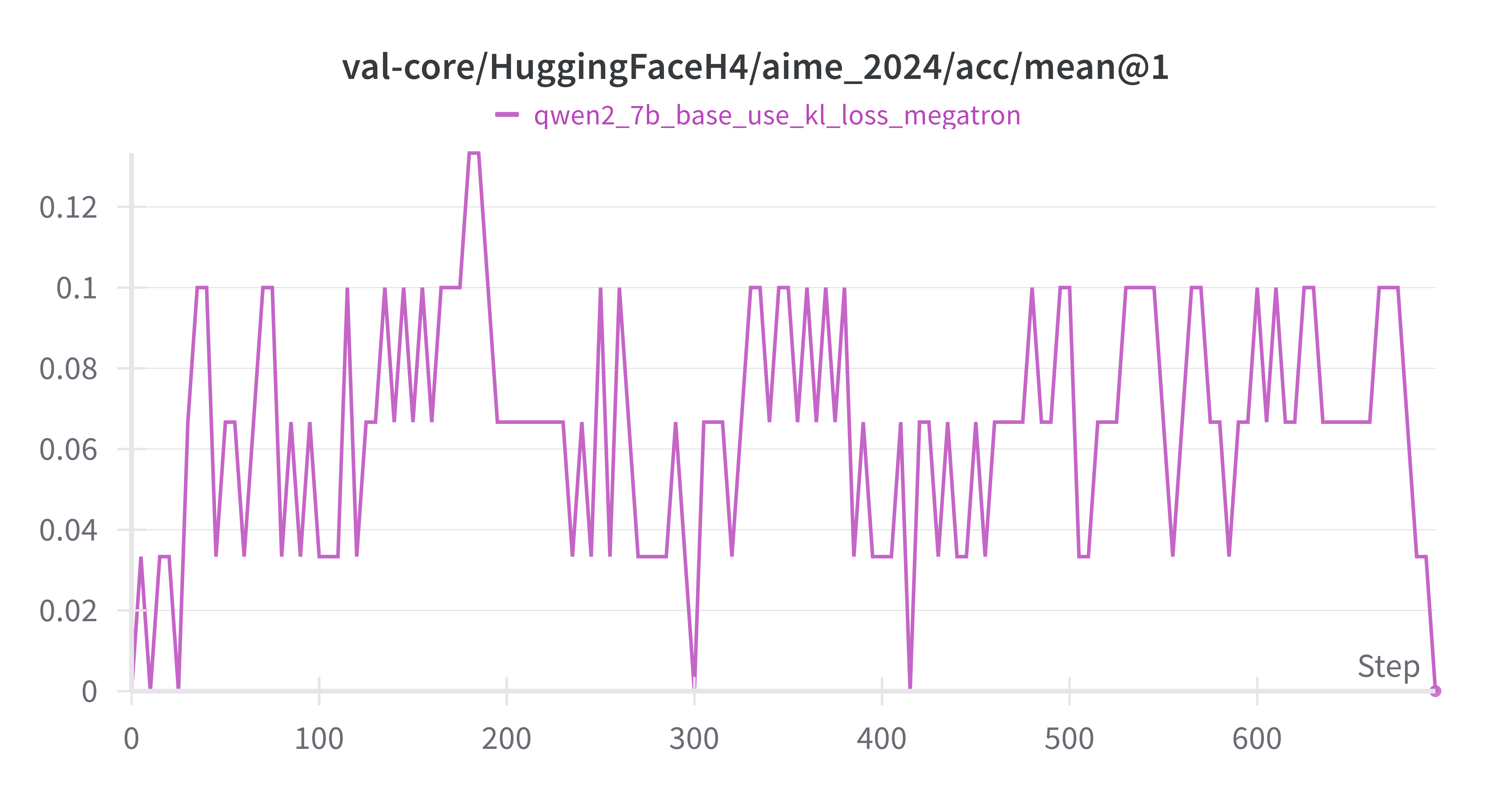

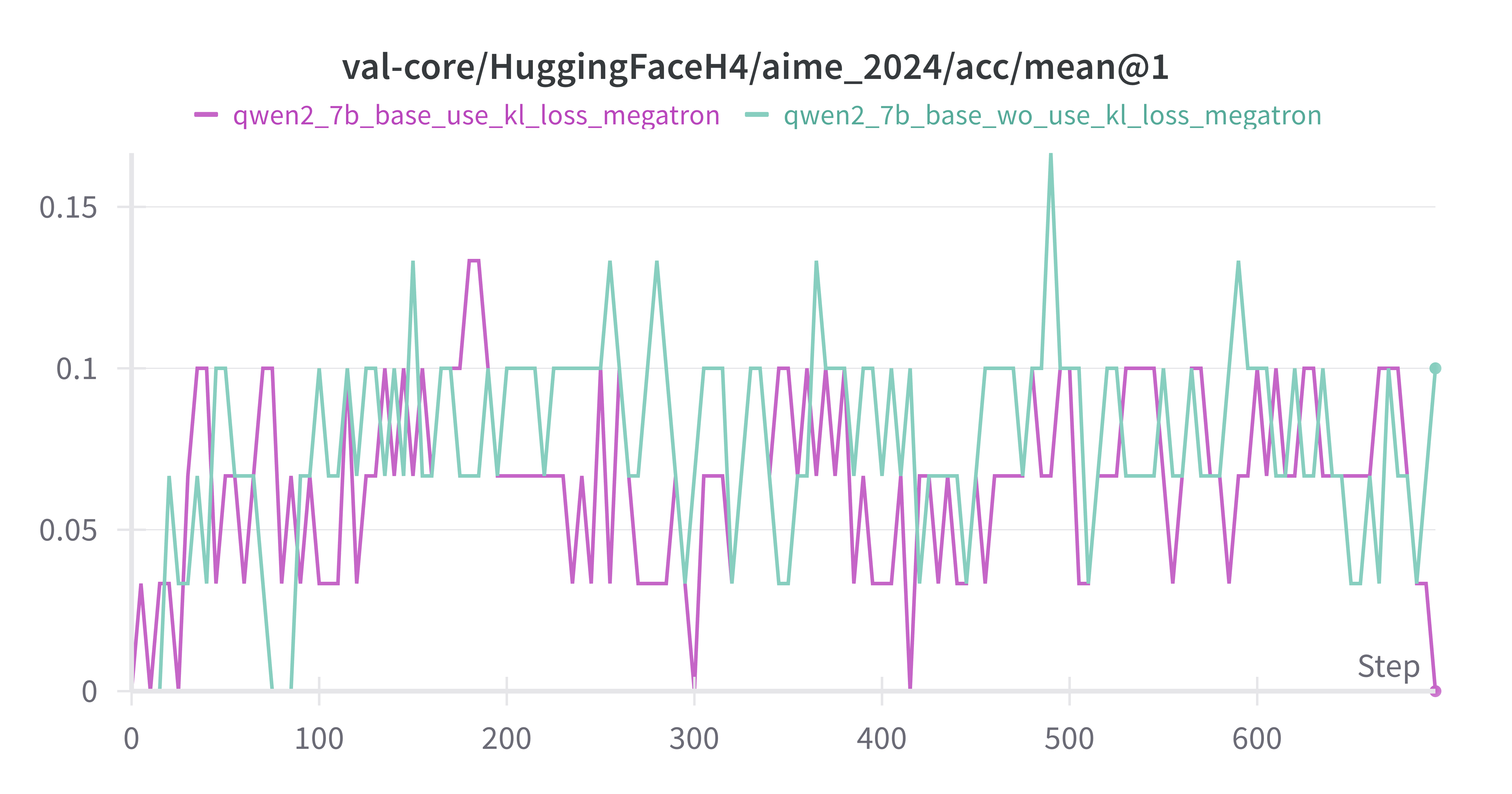

Qwen-7B-Base AIME_2024 acc mean@1

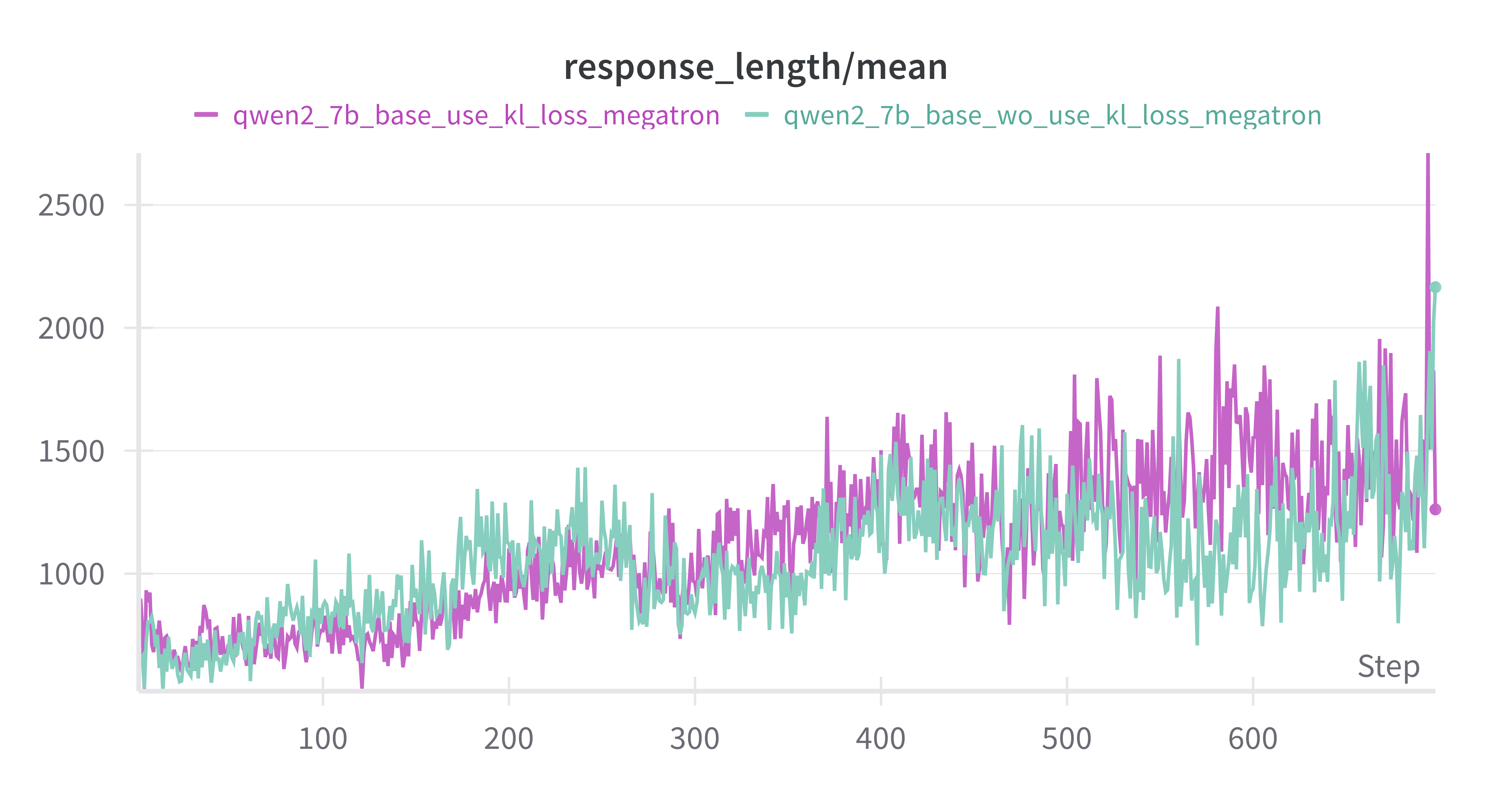

response length持续增加

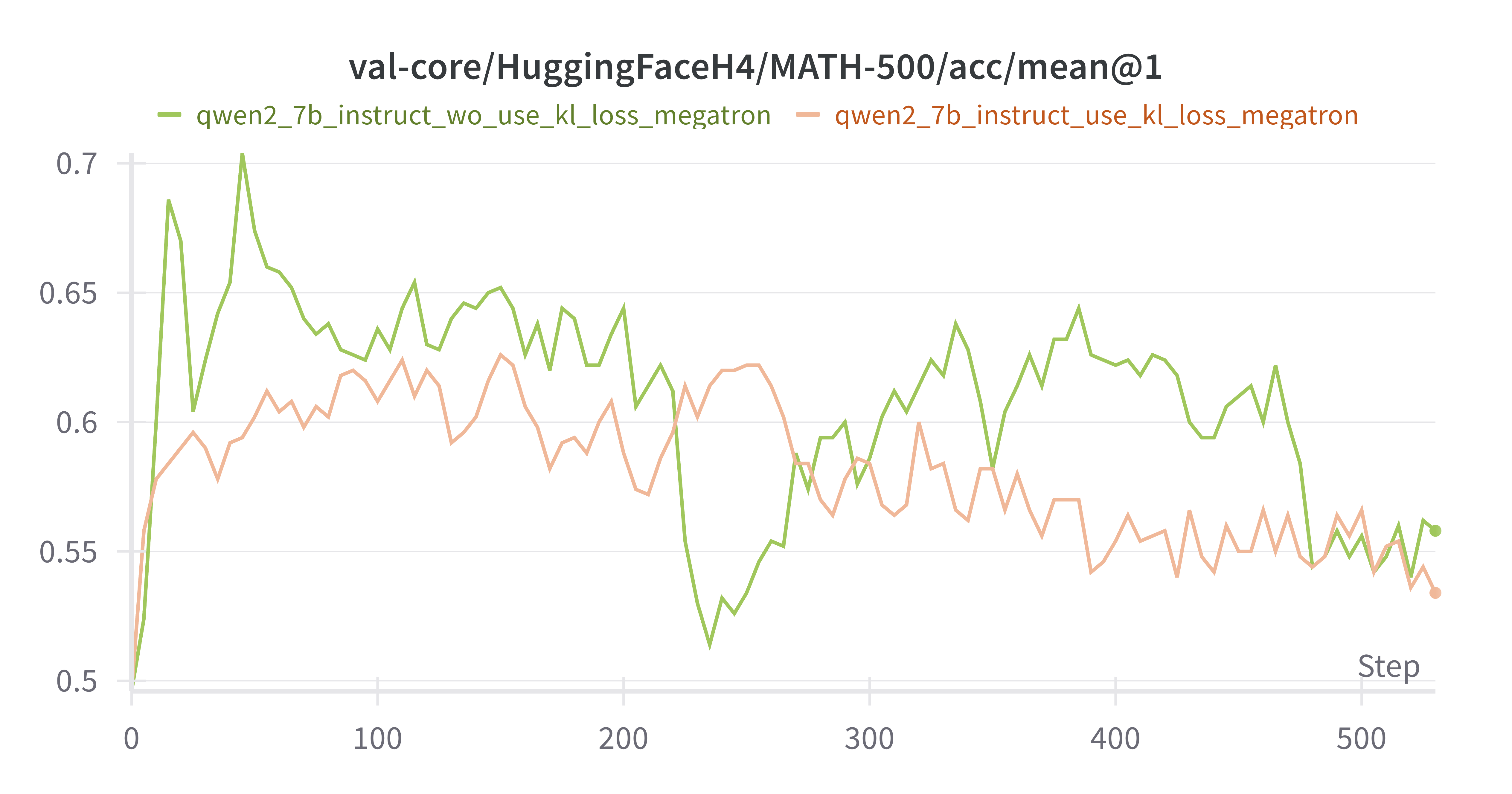

MATH-500 acc在前25个steps快速rise到ceiling，后续波动

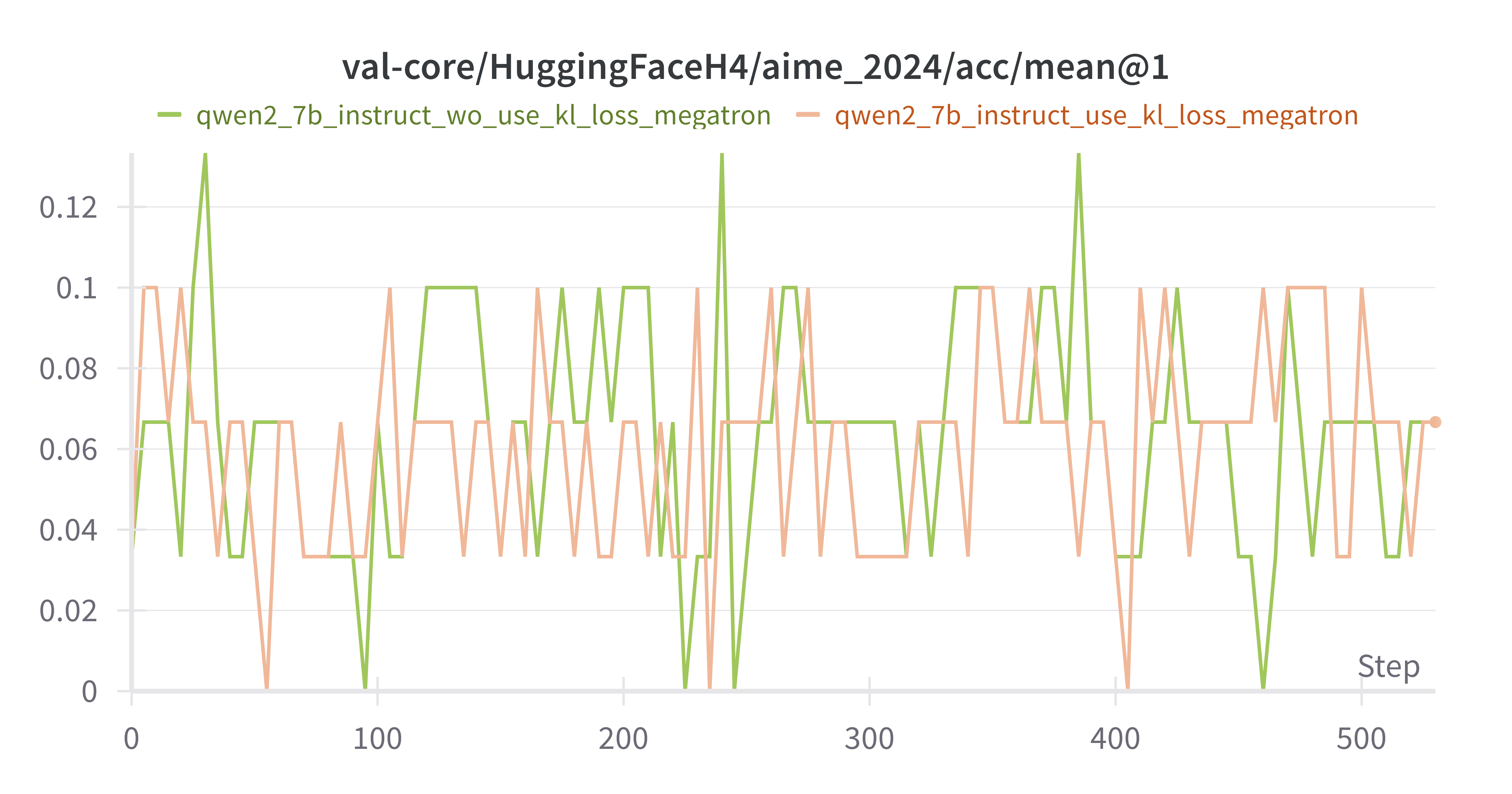

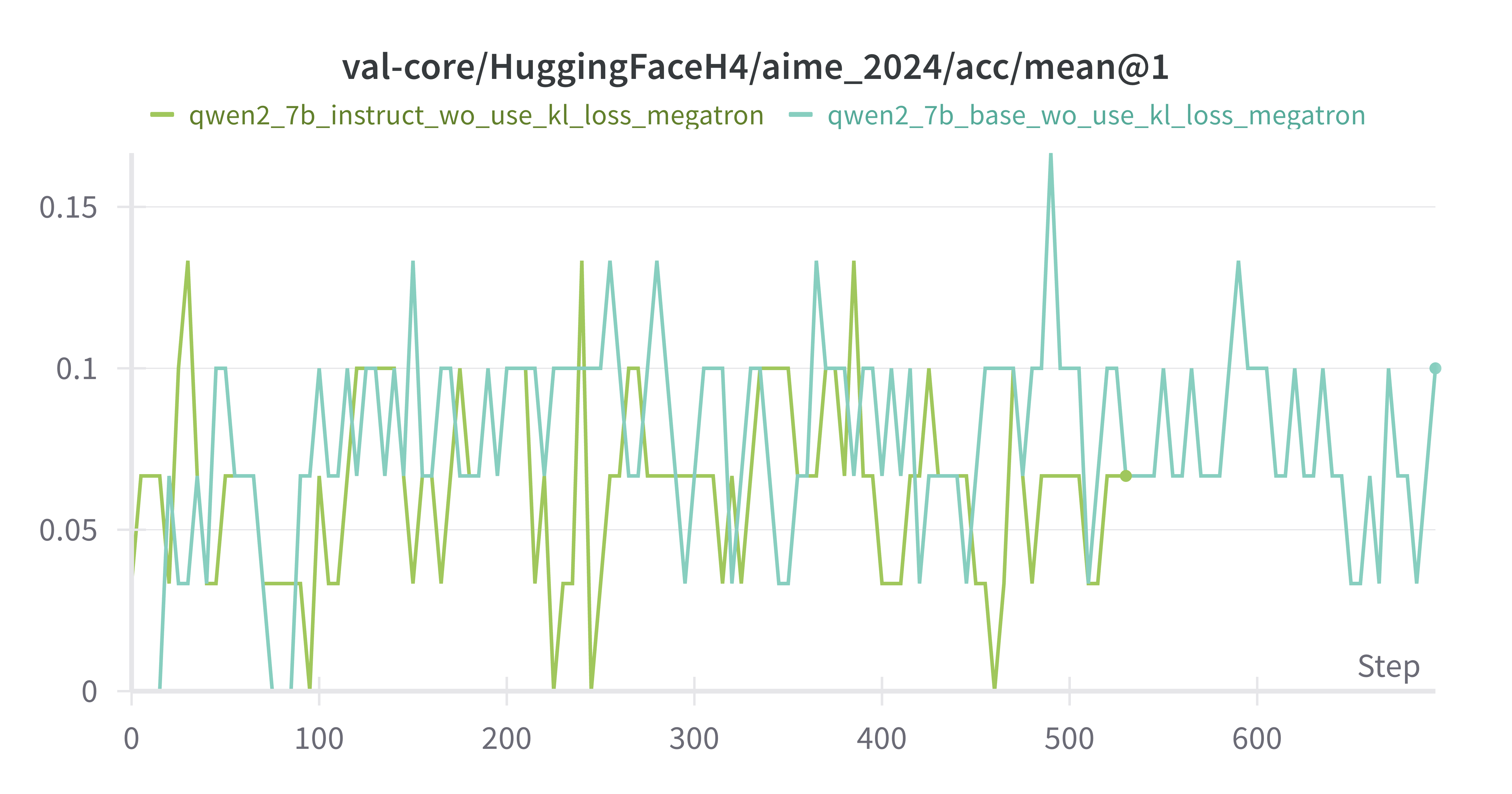

AIME-2024 持续波动

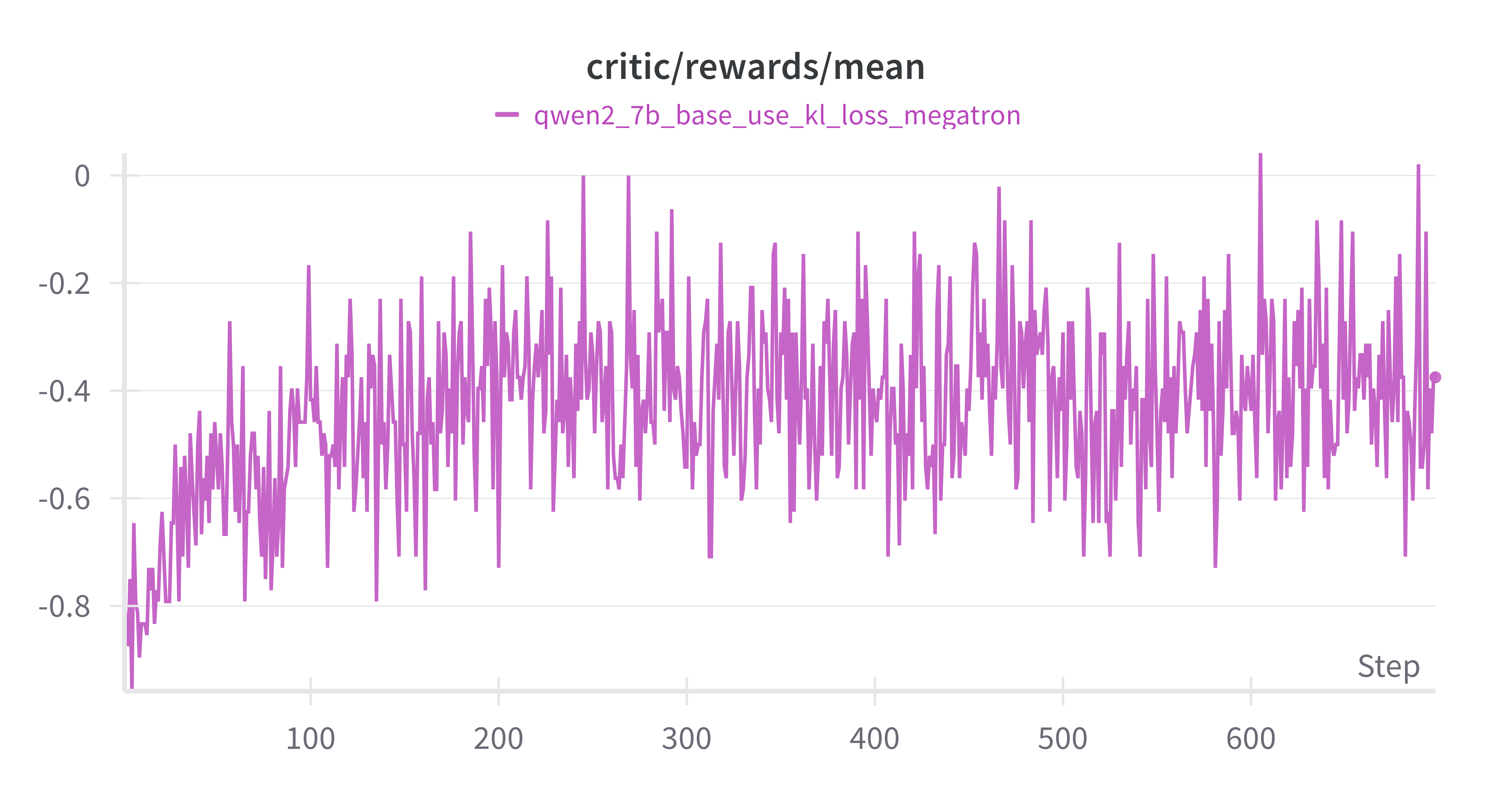

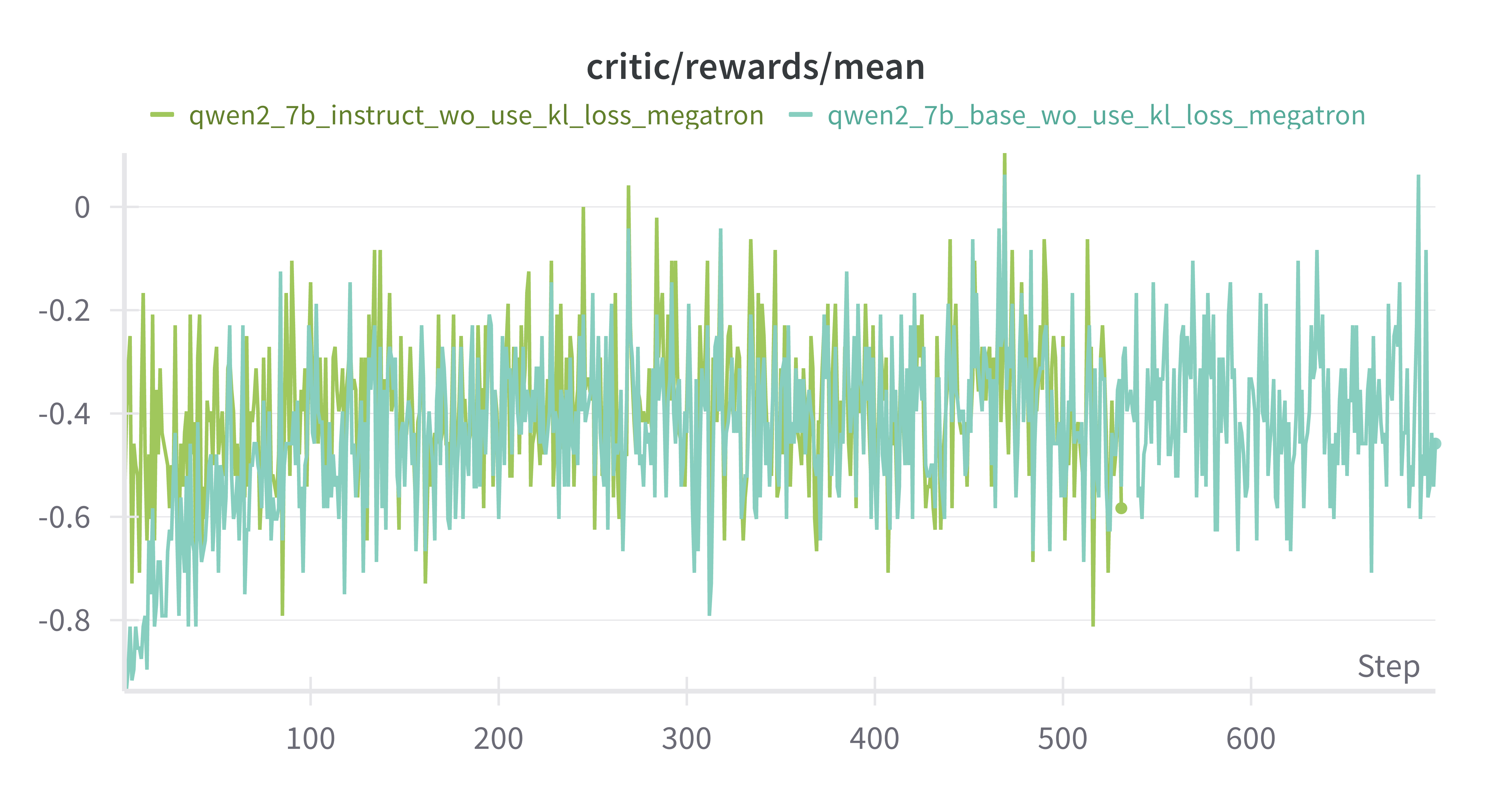

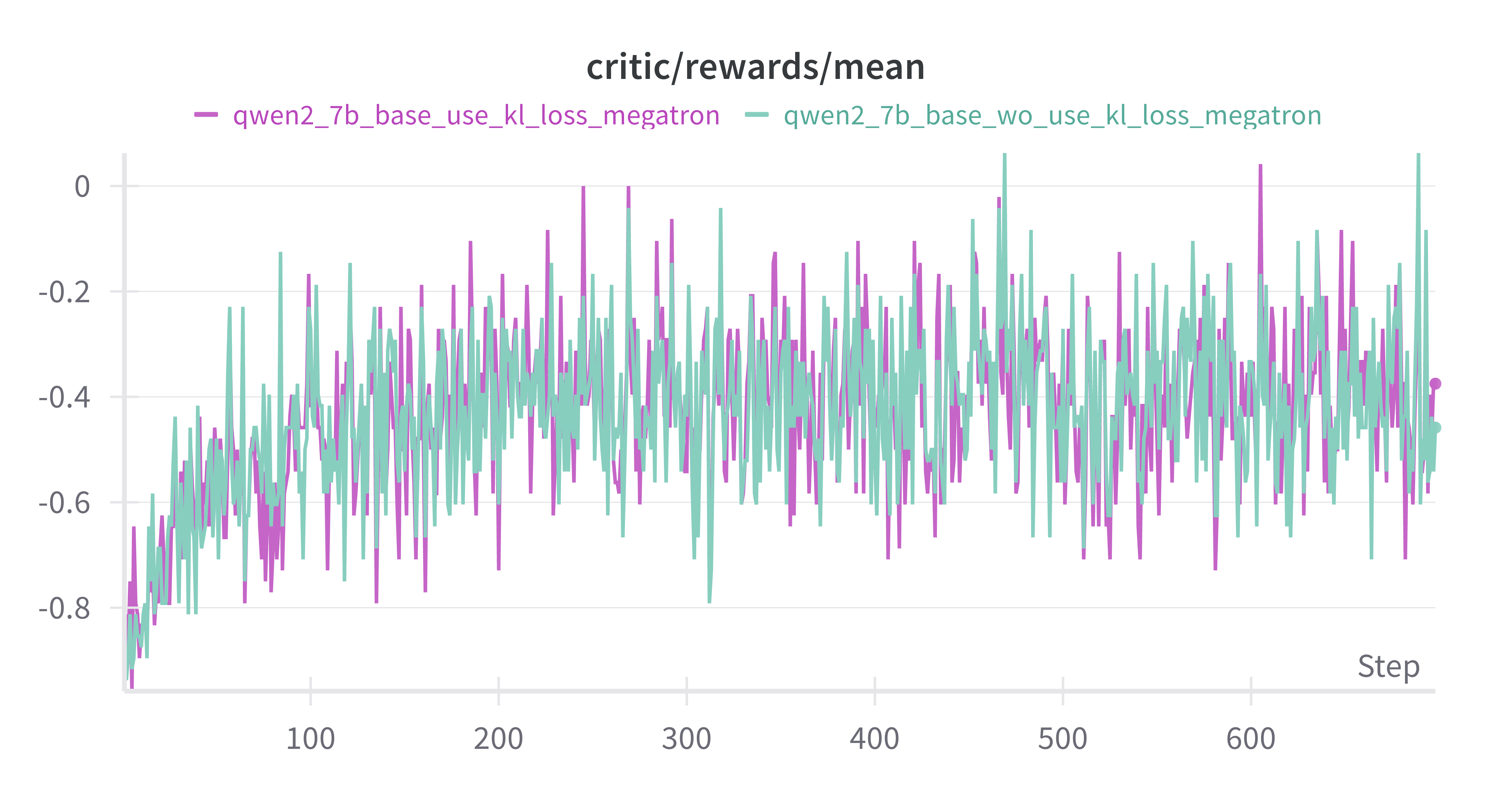

Qwen-7B-Base critic/rewards/mean

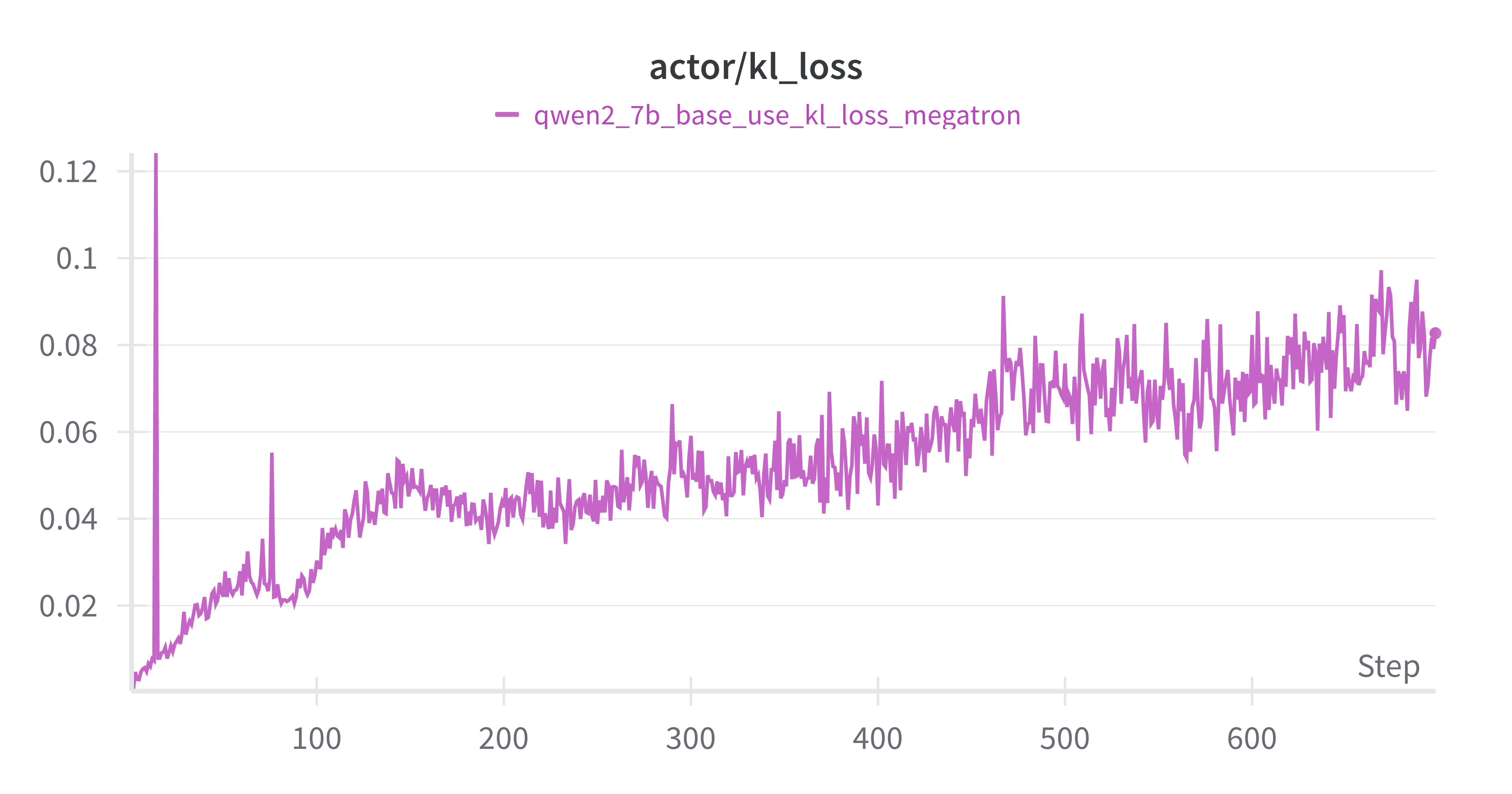

Qwen-7B-Base actor/kl_loss

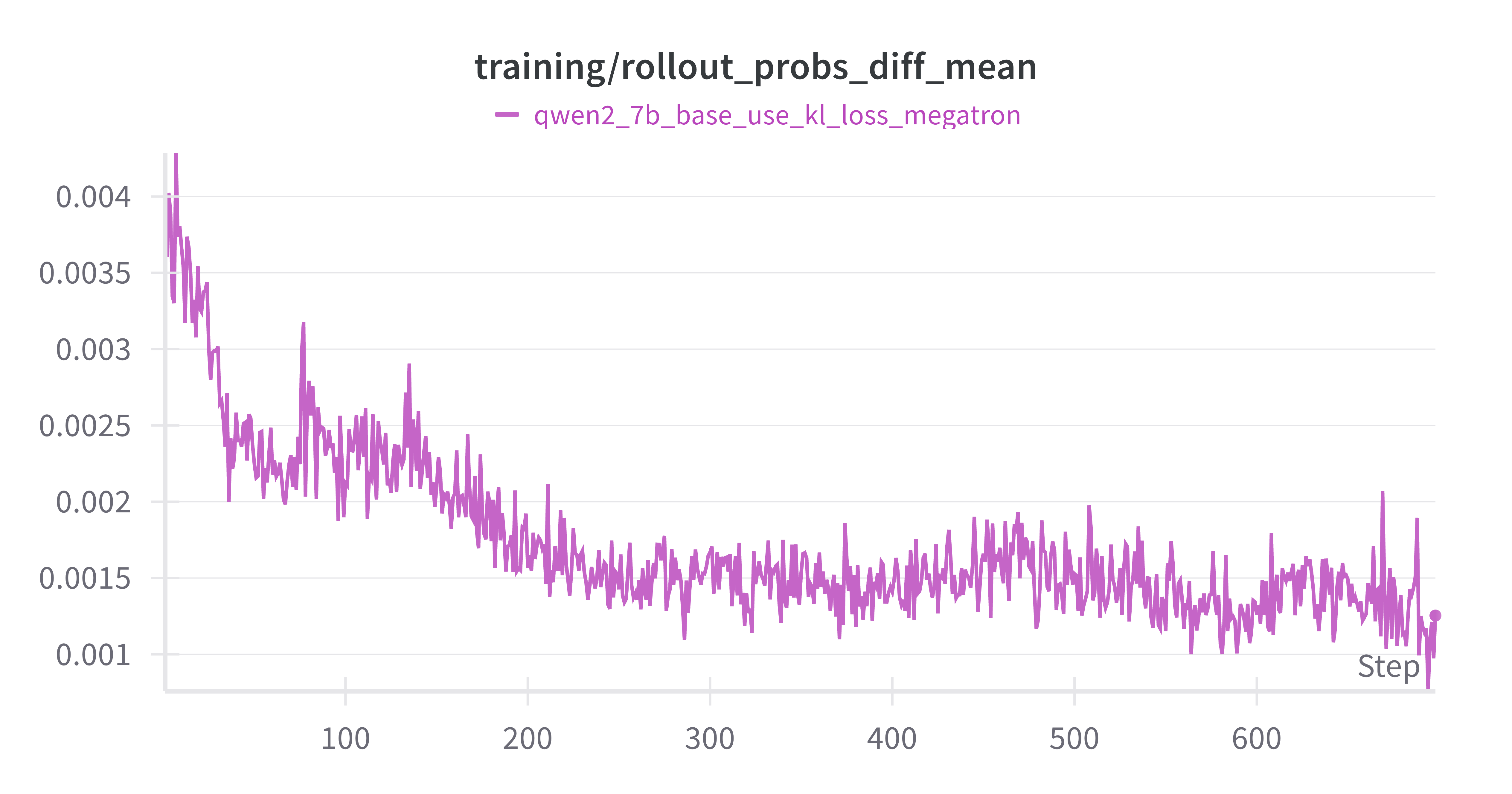

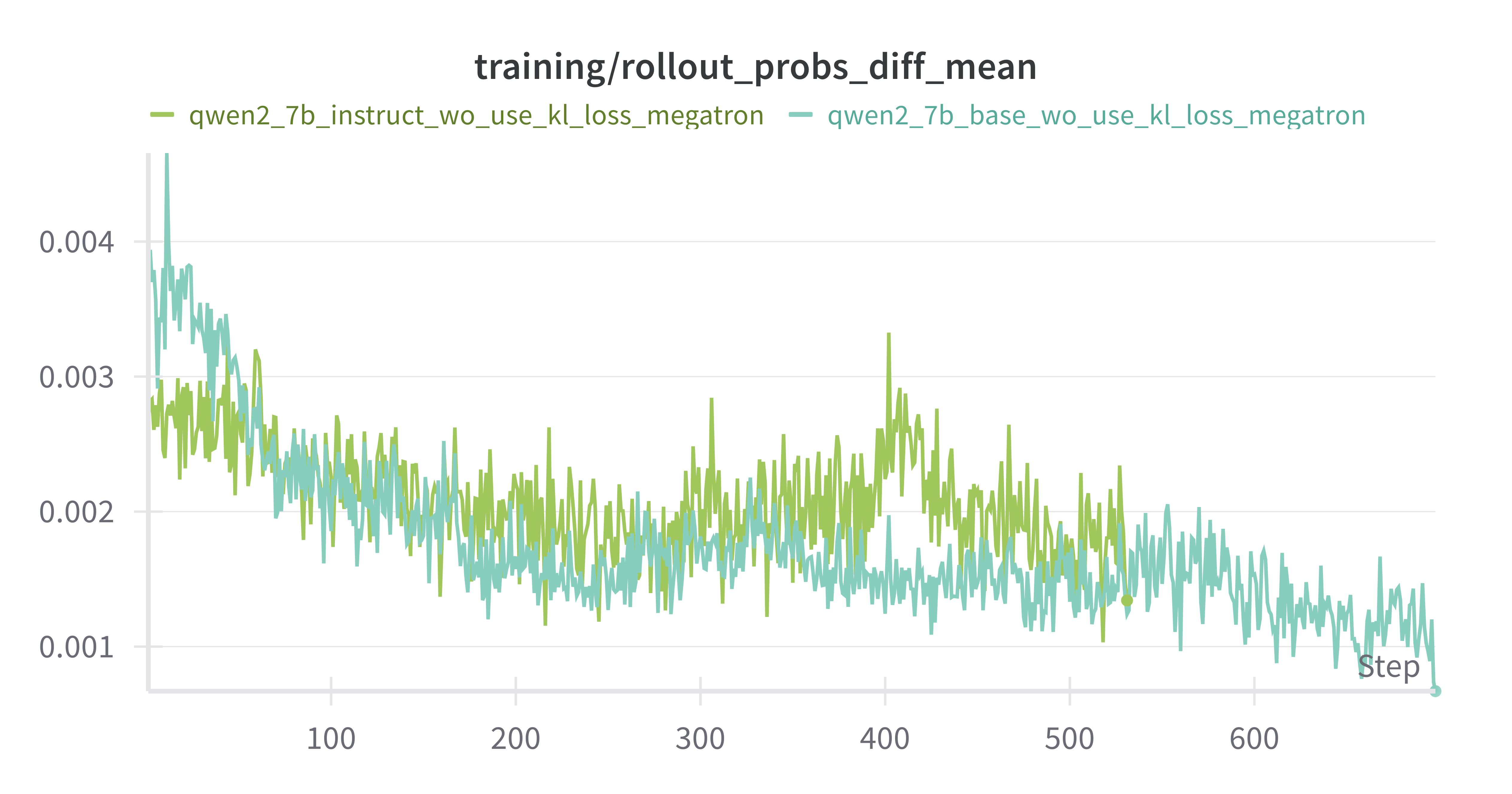

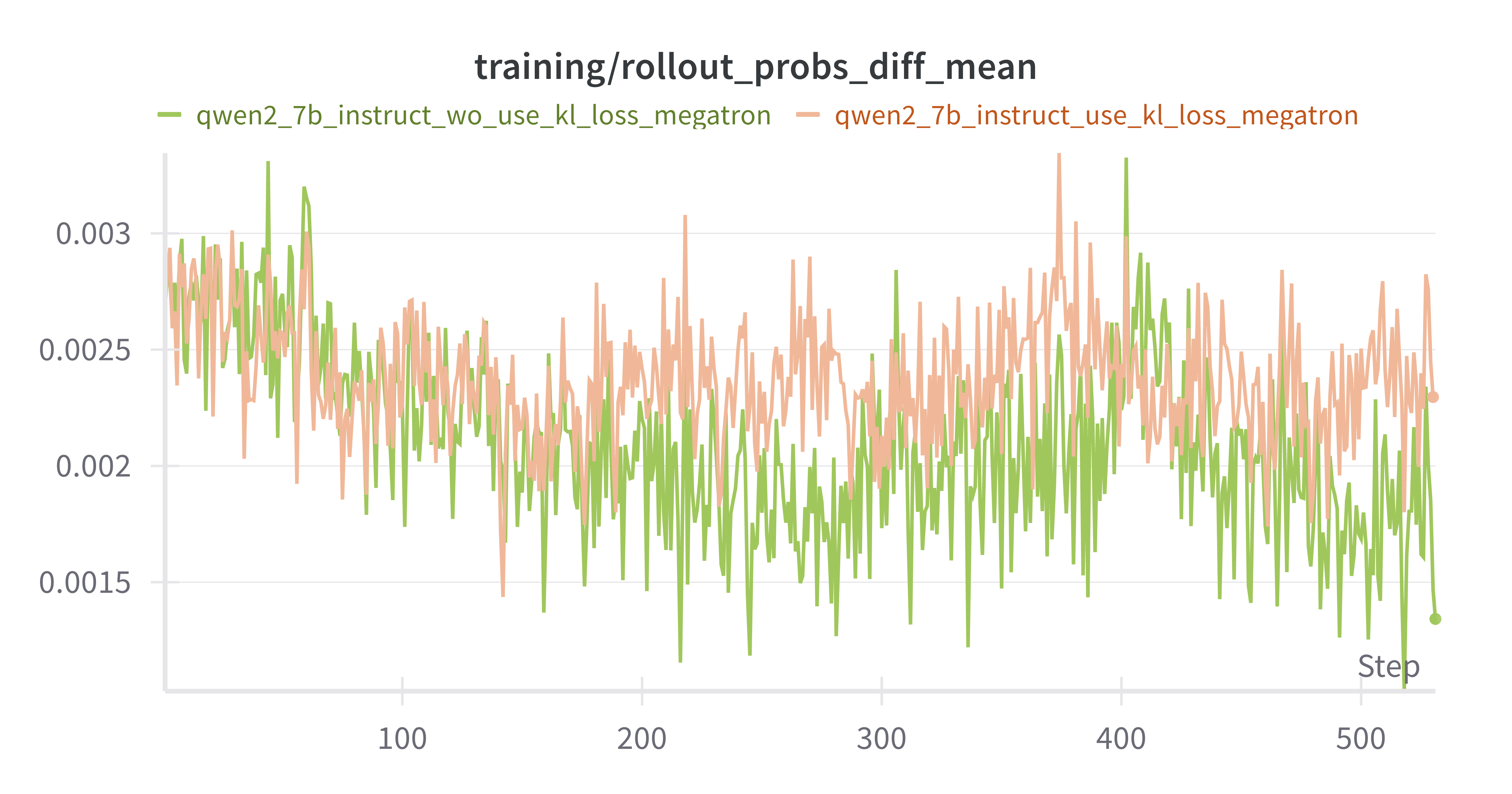

Qwen-7B-Base training/rollout_probs_diff_mean

随训练step增加：

mean reward 增加：符合预期
kl_loss增加：policy model 和 ref model 差异增大
rollout_probs_diff_mean降低：policy model收敛

training/rollout_probs_diff_mean:
$\frac1{N_\text{tok}}\sum_{t=1}^{N_\text{tok}} \bigl|\,p_{\text{actor}}^{(t)}-p_{\text{rollout}}^{(t)}\bigr|,$
——当前 Actor 对batch内 每个 token 的概率 $p_\text{actor}$ 与 生成当时缓存的概率 $p_\text{rollout}$ 之间的 绝对差 的平均值
